OVERVIEW

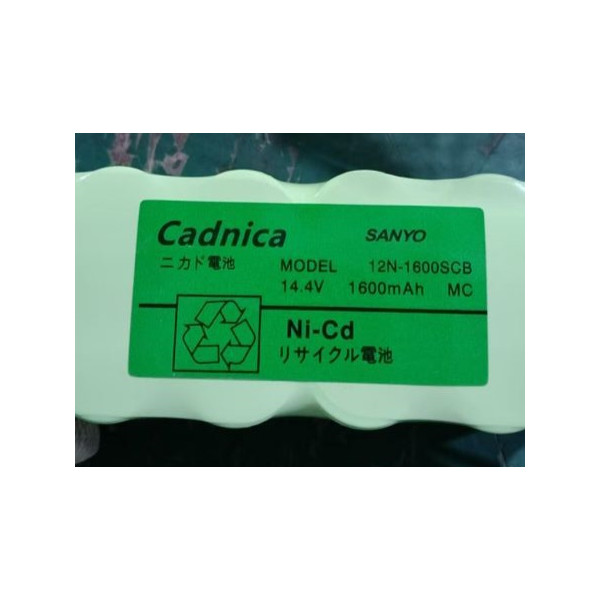

Official designation: Sanyo Cadnica 12N-1600SCB (Cadnica, Ni-Cd Battery Pack)

Role/Application: A rechargeable Nickel-Cadmium (Ni-Cd) battery pack providing 14.4 V and 1600 mAh capacity, commonly used for stable backup power in industrial control systems and equipment like Okuma CNC machines.

KEY SPECS SUMMARY

Power: 14.4 V, 1600 mAh

Interfaces / Ports: Wire Leads With Connector

Indicators: N/A

Operating Temp: Minus 40 to 85 degrees C

Platform / Compatibility: Twelve cells in two horizontal rows

Limit: 1600 mA fast charge

Lifecycle: Discontinued, replacement is 12N-1700SCK

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the nominal capacity and cell chemistry of the 12N-1600SCB battery pack?

A: The nominal capacity is 1600 mAh with Nickel Cadmium chemistry, known for high discharge current.

Wiring & Installation:

Q: What are the physical dimensions of the 12N-1600SCB pack for mounting and replacement?

A: Dimensions are approximately 134 mm long by 45 mm wide by 45 mm high.

Troubleshooting & Compatibility:

Q: Can the 12N-1600SCB be substituted with a similar voltage and capacity NiMH battery?

A: Chemistry substitution is possible but requires charging circuit verification; use only Ni-Cd for exact replacement without circuit review.

Replacement & Upgrades:

Q: What is the primary advantage of the 12N-1600SCB's recommended replacement, the 12N-1700SCK?

A: The 12N-1700SCK offers a slightly higher capacity (1700 mAh) while maintaining the original form factor.
