OVERVIEW

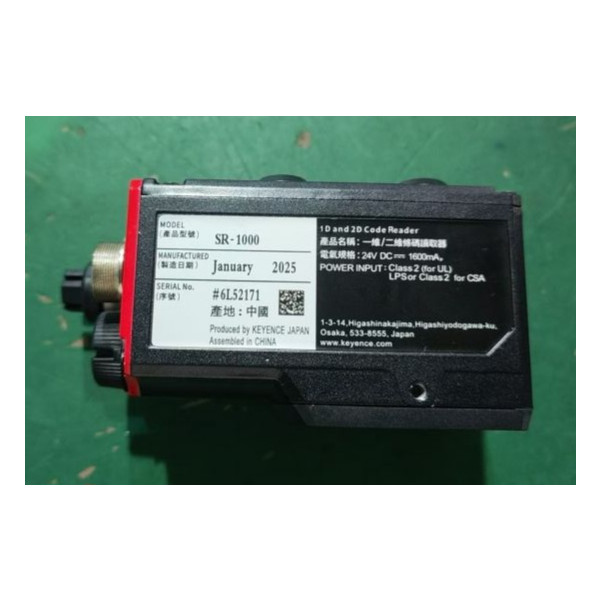

Official designation: KEYENCE SR-1000 (SR-1000 series, Autofocus 1D/2D Code Reader)

Role/Application: High-speed industrial code reader featuring autofocus and automatic tuning to stably decode 1D and 2D codes, including Direct Part Marks, across a wide reading distance range.

KEY SPECS SUMMARY

Power: 24 V DC plus or minus 10 percent, 700 mA

Interfaces / Ports: Ethernet (100BASE-TX), RS-232C, USB 2.0 Full Speed

Indicators: Refer to the latest manufacturer manual.

Operating Temp: 0 to 45 degrees C

Platform / Compatibility: Supports EtherNet/IP, PROFINET, Omron PLC link

Limit: Two control inputs, three photo MOS relay outputs (100 mA total max)

Lifecycle: Refer to the latest manufacturer manual.

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the minimum resolution for reading 2D codes with the standard SR-1000 model?

A: The minimum resolution for 2D codes on the standard model is 0.063 millimeters.

Wiring & Installation:

Q: What are the required current and voltage specifications for the control inputs?

A: Inputs are bidirectional voltage, with a maximum rating of 26.4 V DC and minimum ON voltage of 15 V DC.

Troubleshooting & Compatibility:

Q: Which common industrial protocols are supported for network communication?

A: Supported protocols include TCP/IP, MC Protocol, EtherNet/IP, PROFINET, and Omron PLC link.

Replacement & Upgrades:

Q: Can the SR-1000 be used for very wide-field reading applications?

A: The SR-1000W model is available for wide-field applications, offering a larger field of view than the standard type.
