OVERVIEW

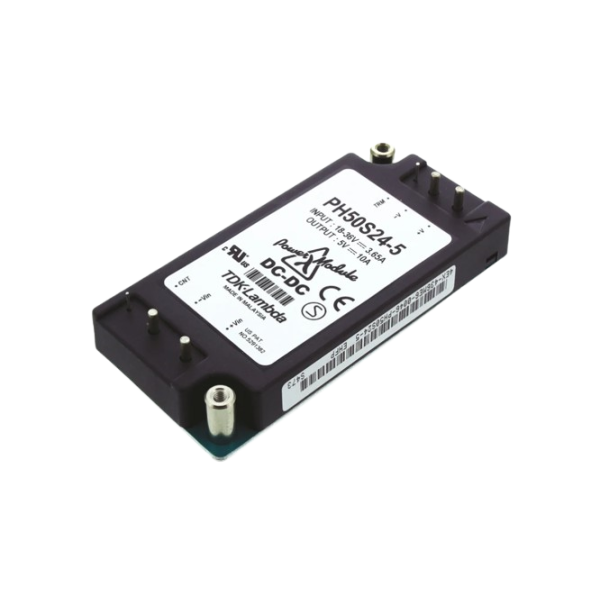

Official designation: TDK-Lambda PH50S24 (PH-S Series, Isolated DC-DC Converter Module)

Role/Application: A high-density, single-output DC-DC converter providing 50 W of regulated power for industrial, process control, and automation systems.

KEY SPECS SUMMARY

Power: 18 V DC to 36 V DC nominal input, 50 W output

Interfaces / Ports: Through hole mounting, module package

Indicators: OCP, OTP, OVP protection features

Operating Temp: Negative 20 degrees C to plus 85 degrees C

Platform / Compatibility: Simple function module, remote On/Off control

Limit: 3 kV AC input to output isolation voltage

Lifecycle: Obsolete, replacement interchangeability not guaranteed

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the maximum output current for the PH50S24-15 model?

A: The PH50S24-15 model provides a maximum output current of 3.4 Amps.

Wiring & Installation:

Q: What are the physical dimensions of the PH50S24 DC-DC converter module?

A: Dimensions are 86.0 millimeters length by 41.0 millimeters width by 12.7 millimeters height.

Troubleshooting & Compatibility:

Q: What protections are built into the PH50S24 series converters for safe operation?

A: Built-in features include over current, over temperature, and over voltage protection circuits.

Replacement & Upgrades:

Q: Is the recommended alternate part number fully interchangeable with the obsolete PH50S24?

A: Interchangeability is not guaranteed; verify specifications against the CN50A24 model.
