OVERVIEW

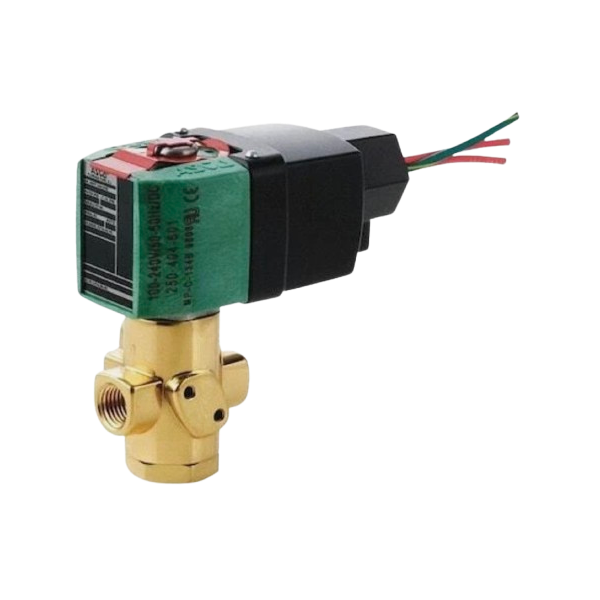

Official designation: ASCO 8320R172 (RedHat Series 8320, General Service Solenoid Valve)

Role/Application: A 3-way, 2-position, direct-acting universal solenoid valve for precise on/off control of air, inert gas, light oil, and water in automation systems.

KEY SPECS SUMMARY

Power: 24 to 120 V AC/DC, 100 to 240 V AC/DC

Interfaces / Ports: 1/4 inch NPT or BSPP female threaded ports

Indicators: NEMA 1/2/3/3S/4/4X enclosure rating

Operating Temp: 0 degrees C to 52 degrees C (AC), 0 degrees C to 40 degrees C (DC)

Platform / Compatibility: Universal flow, direct acting, brass body, NBR seals

Limit: 0 psi minimum to 160 psi maximum pressure differential

Lifecycle: RedHat Next Generation model, coil rebuild kit 326061 is available

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the flow capacity or coefficient of volume (Cv) for the 8320R172 valve?

A: The solenoid valve has a coefficient of volume (Cv) rating of 0.09.

Wiring & Installation:

Q: What type of media can the ASCO 8320R172 solenoid valve safely handle?

A: It is designed for air, inert gases, water, and light oil.

Troubleshooting & Compatibility:

Q: Does the 8320R172 require a minimum operating pressure differential to function?

A: No, this direct-acting valve requires a minimum operating pressure differential of 0 psi.

Replacement & Upgrades:

Q: What are the power consumption benefits of the RedHat Next Generation coil technology?

A: The enhanced solenoid draws 1.5 W maximum power, significantly lower than conventional solenoids.
