OVERVIEW

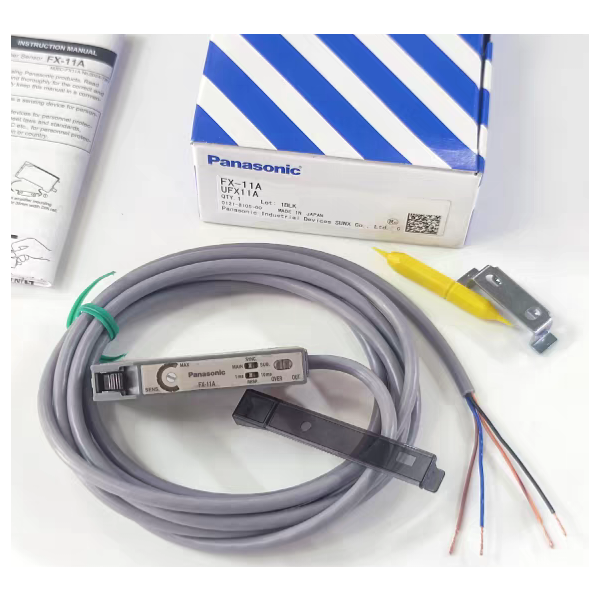

Official designation: Panasonic FX-11A (FX-10, Fiber Optic Sensor Amplifier)

Role/Application: A slim-body, DC-powered amplifier that converts detected light intensity from an attached fiber optic cable into a continuous 1 to 5 V analog voltage output for proportional light detection.

KEY SPECS SUMMARY

Power: 12 to 24 V DC

Interfaces / Ports: 4-core cabtyre cable

Indicators: Red LED (incident beam)

Operating Temp: Minus 10 to 55 degrees C

Platform / Compatibility: Accepts standard 2.2 mm fibers

Limit: Load resistance 2 kiloOhm or more

Lifecycle: Discontinued, replacement is FX-505-C2

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What are the two selectable response times for the FX-11A fiber optic sensor amplifier?

A: The response time can be switched between 1 ms or less, or 10 ms or less for application flexibility.

Wiring & Installation:

Q: What is the slim-body dimension of the FX-11A, and what is the maximum cable extension length?

A: Dimensions are 10 x 63 x 31.5 mm (width x height x depth). Cable extension is possible up to 100 meters.

Troubleshooting & Compatibility:

Q: What is the function of the saturation indicator LED, and what output voltage does it represent?

A: The green saturation indicator lights up when the analog output voltage reaches its 5 V maximum.

Replacement & Upgrades:

Q: Is the recommended replacement model, the FX-505-C2, a direct function-for-function substitute for the FX-11A?

A: Refer to the latest manufacturer manual for the FX-505-C2 to verify direct functional equivalence and features.
