OVERVIEW

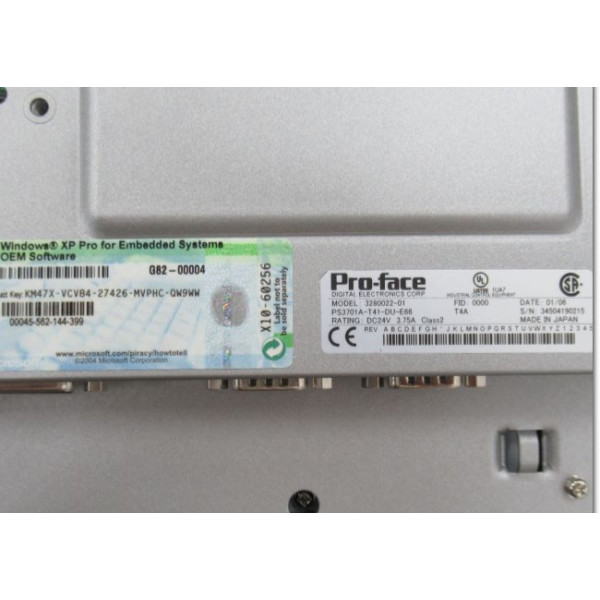

Official designation: Pro-face PS3701A-T41-DU-E66 (PS3000 Series, Industrial PC)

Role/Application: A fanless industrial panel PC with a 15-inch display, designed for HMI and monitoring tasks in factory automation, offering reliable computing in challenging environments.

KEY SPECS SUMMARY

Power: DC 24 V, 90 VA maximum power consumption

Interfaces / Ports: 10/100BASE-TX LAN, Two USB 1.1 ports, Two PCMCIA slots

Indicators: Refer to the latest manufacturer manual.

Operating Temp: 5 to 45 degrees C (with HDD), 0 to 50 degrees C (without HDD)

Platform / Compatibility: Supports Windows 2000/XP/XP Embedded

Limit: IP65f (JEM 1030), NEMA 4X/12 equivalent front panel protection

Lifecycle: End of sales June 29, 2007; Replacement option available

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the resolution and type of the 15-inch display on the PS3701A-T41-DU-E66?

A: The display resolution is XGA (1024 x 768 pixels) with a TFT color LCD and resistive film touch panel.

Wiring & Installation:

Q: What are the external dimensions and approximate weight of the PS3701A-T41-DU-E66 unit?

A: Dimensions are 395 x 294 x 60 millimeters (W x H x D), with a weight of approximately 6.0 kilograms.

Troubleshooting & Compatibility:

Q: Which CPU powers the PS3701A-T41-DU-E66 and what is its clock speed?

A: The unit is powered by an EDEN ESP6000 processor running at 667 MHz.

Replacement & Upgrades:

Q: Are there recommended successor models available since the PS3701A-T41-DU-E66 is obsolete?

A: Refer to the latest manufacturer manual for specific recommended replacement options.
