OVERVIEW

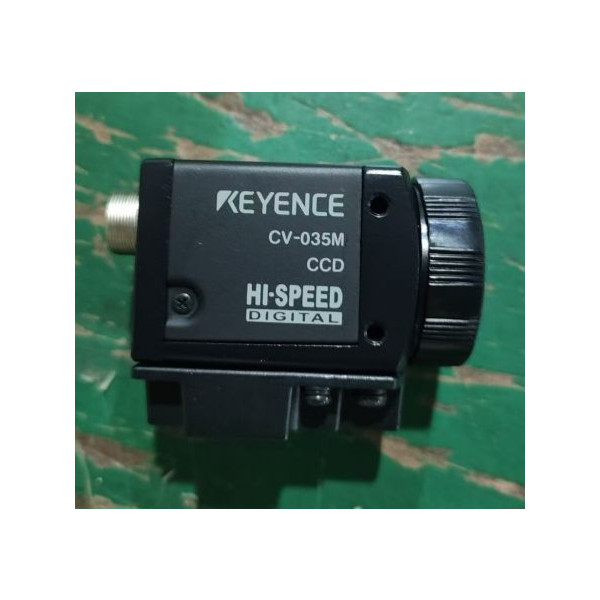

Official designation: KEYENCE CV-035M (CV Series, Hi-Speed Digital Camera)

Role/Application: A high-speed monochrome CCD camera designed for machine vision and automated visual inspection, offering double-speed reading and high image clarity for real-time quality control.

KEY SPECS SUMMARY

Power: Supplied by controller

Interfaces / Ports: Digital serial transfer cable connection

Indicators: Refer to the latest manufacturer manual.

Operating Temp: 0 to 50 degrees C

Platform / Compatibility: KEYENCE CV-X or CV-3000 Series controllers

Limit: 320,000 valid pixels (656 H x 492 V)

Lifecycle: Discontinued, replacement is CA-035M

FREQUENTLY ASKED QUESTIONS

Technical Specifications:

Q: What is the pixel transfer frequency and the image pickup element size?

A: Pixel transfer frequency is 24.5 MHz, and the image element is a 1/3-inch monochrome CCD.

Wiring & Installation:

Q: What is the required lens mounting specification for the CV-035M camera?

A: The camera uses a standard C-mount method for lens attachment.

Troubleshooting & Compatibility:

Q: What is the total weight of the CV-035M camera module for installation planning?

A: The camera body weighs approximately 100 grams, not including the lens.

Replacement & Upgrades:

Q: What is the recommended replacement model for the discontinued CV-035M?

A: The recommended replaceable product is the environment-resistant CA-035M monochrome camera.
